Electrical spec. of the AC adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/2.0A; power:18W

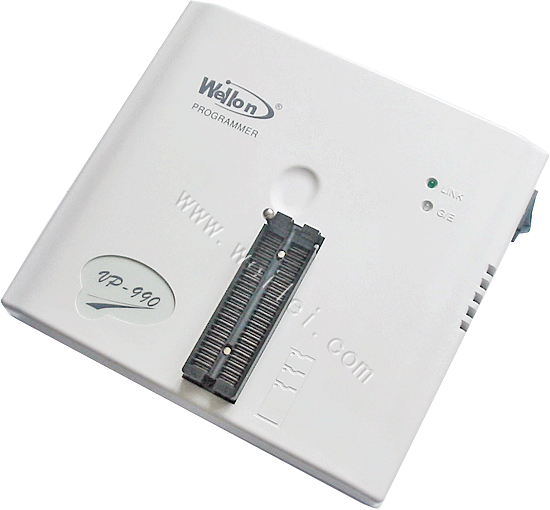

48 Pin ZIF socket with universal pin-drivers.
Interface with LAPTOP, PC or compatibles through USB
Accepts standard file formats: JEDEC, INTEL (Extended) HEX,
HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record
Manages 16 and 32-bit word split (Set Programming)
Features Test Vector capability and multiarray fuse map editor
Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory
Optimum programming for each individual device
Automaticly Identifies the manufacturer and type of E(E)PROMs,
Auto identifies TTL/CMOS logic IC
Device insertion and poor-pin-contact check
Support 1.5v Low voltage devices
Not need exterior adapter for mostly devices.
Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters
Auto-run mode starts programming automatically upon detection
of chip insertion
Supports WindowsXP/Vista/ Windows 7 (32bit and 64bit)/ Windows 8 (32bit and 64bit)
Supports ten languages,such as Chinese(Simplified),Chinese(Traditional),English,Korean,Poland,Italian,Portuguese£¬Dutch, Turkish
PROM: N/CMOS E(E)PROM,
SeriesE(E)PROM, and FLASH Memory
PLD: CPLD, EPLD, GAL,PEEL,PALCE and more
Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog,
TTL (74 series), CMOS
(40/45 series) Logic IC
DRAM (4164, 41464 ...), SRAM (2114, 6116 ...) memory device
WEILEI updates software
and device algorithm regularly. You can get the latest software
free of charge through internet http://www.weilei.com.
WEILEI also adds devices upon customer's request at its option.
15 day moneyback guaranty, one year warranty
& TECHNICAL SUPPORT:
Programmer is warranted
to be free of manufacturing or workmanship defects for one
year from the date of purchase. Technical support is available
by phone Monday through Friday 9:00am to 5:00pm.
